Bottom wrapping machine

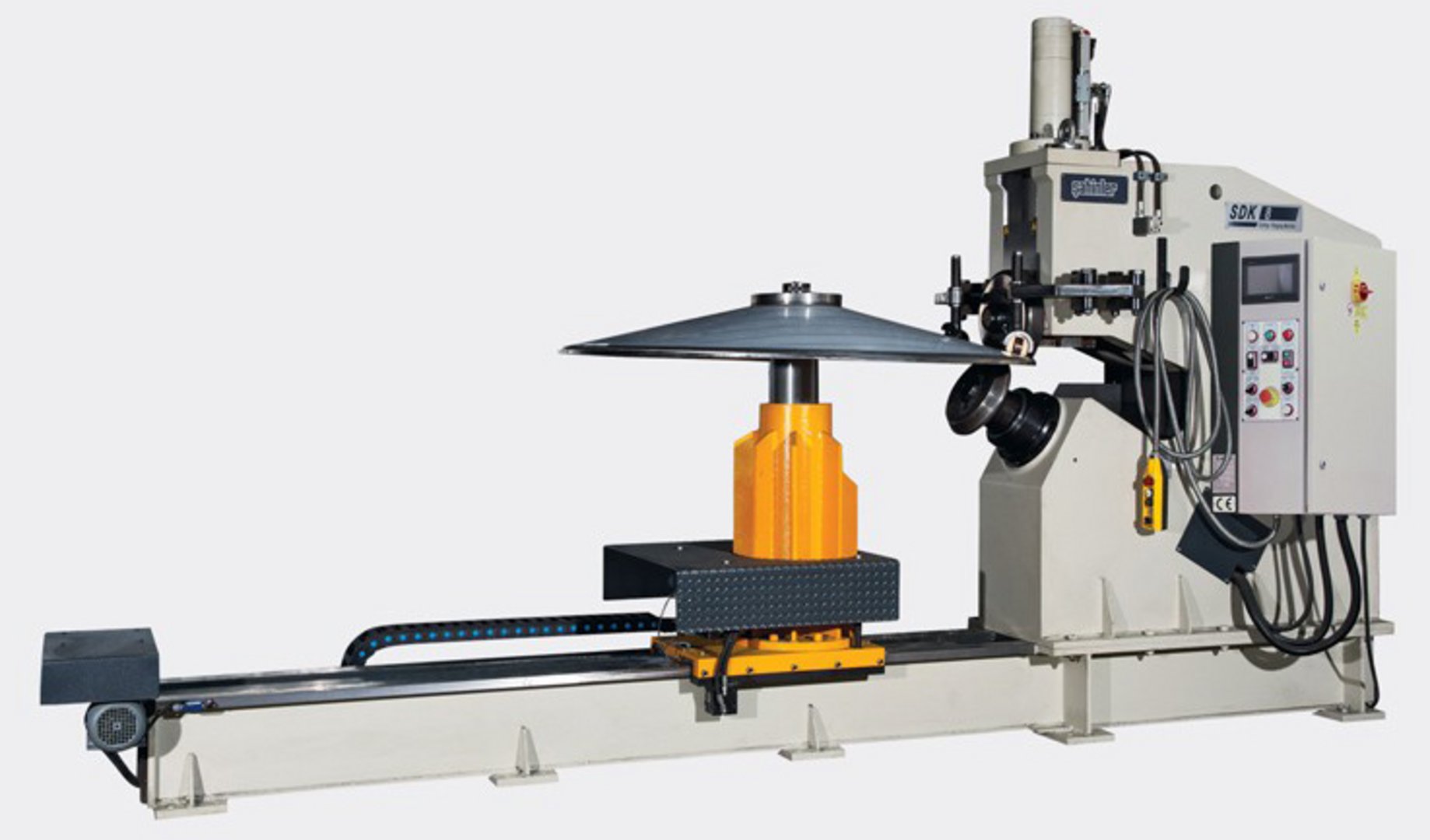

The ŞAHİNLER SDK – 8 machine is designed for cutting and beveling stainless steel bottoms with a thickness of up to 6mm.
The machine can process conical, flat and "Japanese hat" type bottoms with diameters from Ф700 to Ф4500mm.
The bending radius is up to R35mm.

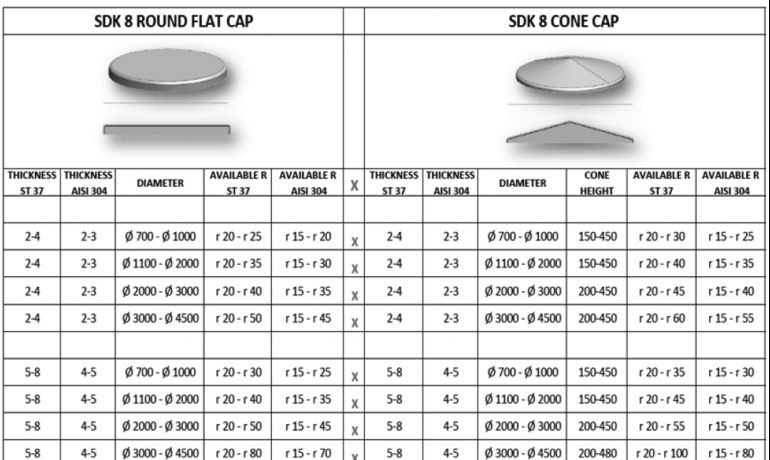

Table of the capacity and capabilities of the machine according to the type of material, type of bottom:
The machine can process conical, flat and "Japanese hat" type bottoms with diameters from Ф700 to Ф4500mm.
The bending radius is up to R35mm.

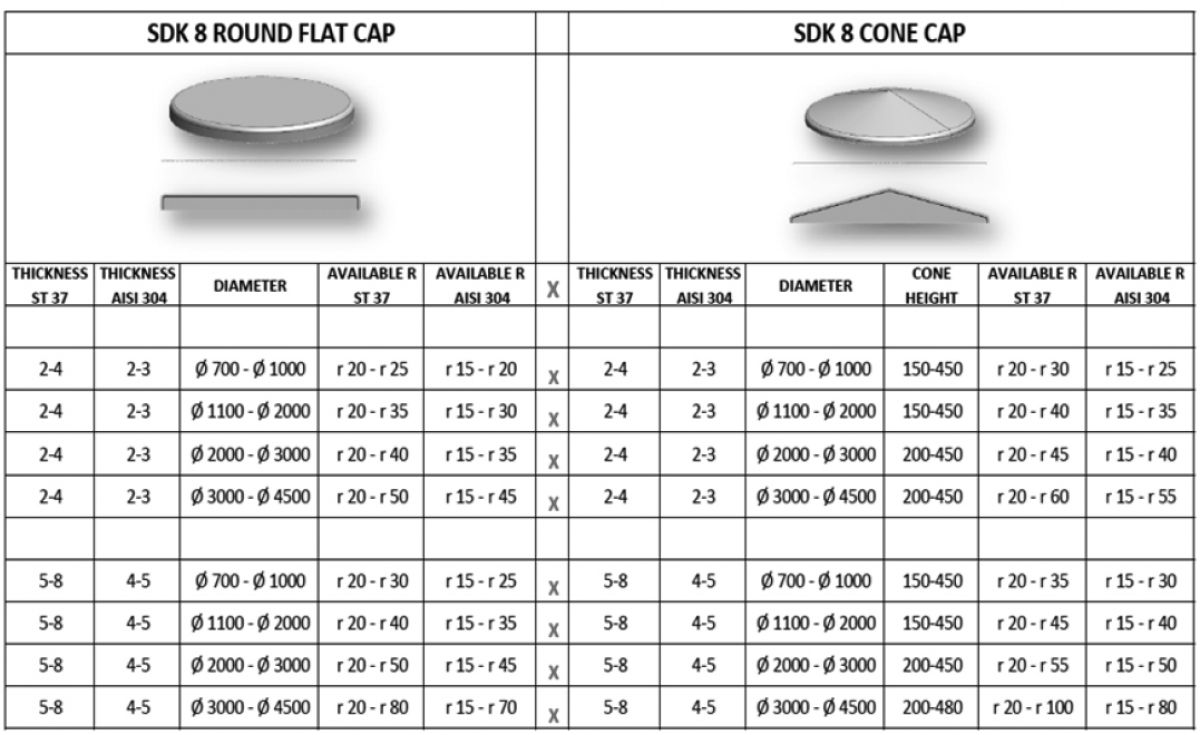

Table of the capacity and capabilities of the machine according to the type of material, type of bottom:
